Citicore Solar Tarlac 1

Strategically located assets across the country

Citicore Solar Tarlac 1

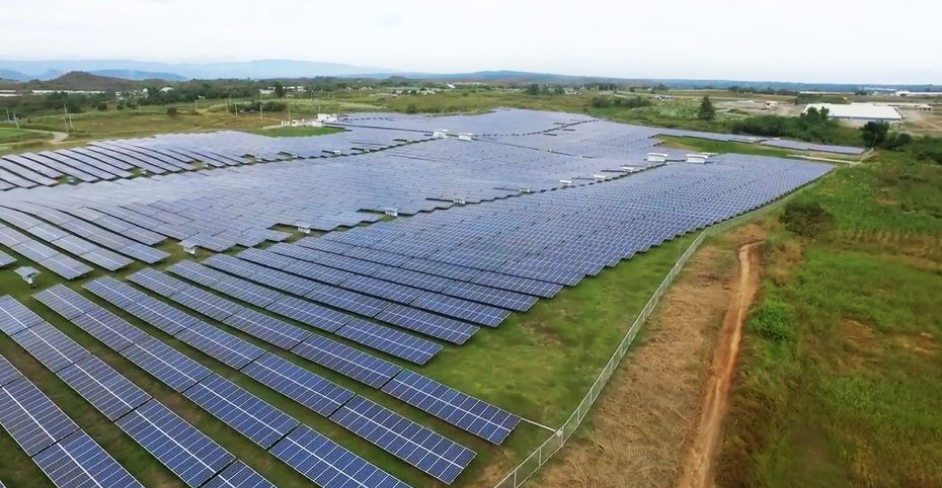

Actual site photos





Technical Description

Location Brgy. Armenia, Tarlac City
Service Contract

Citicore Solar Tarlac 1

8.8MW Solar Power Generation (for 25 Years)

Grid Luzon
Transmission Line 8.8 MWdc
Installed Capacity 15.0 MWDC
Inverter

Huawei SUN2000 – 33KTL

236 Inverters

COD 29 February 2016
Design Life 30 years
EPC Contractor(s)

ib vogt (offshore)​

Villanueva (onshore)

O&M Contractor(s) CPI
Grid Connections Connection point to the NGCP grid through the TEI’s San Rafael 21/28 MVA Substation





PV Module Description

No. of modules 33,984
Manufacturer Trina Solar/TSM-260-PC05S
Model 260
Cell Type Multicrystalline
Peak Power Output 260Wp
Module Efficiency 15.9%
Power Tolerance 0/+5Wp
Temp Coefficient -0.41%/°C



  • Trina Solar’s modules are designed to deliver great low light performance with advanced surface texturing, back surface field and selective emitters​
  • Highly reliable with stringent quality control controlled by over 30 in-house tests. Modules are PID resistant​
