Citicore Solar Cebu

Strategically located assets across the country

Citicore Solar Cebu

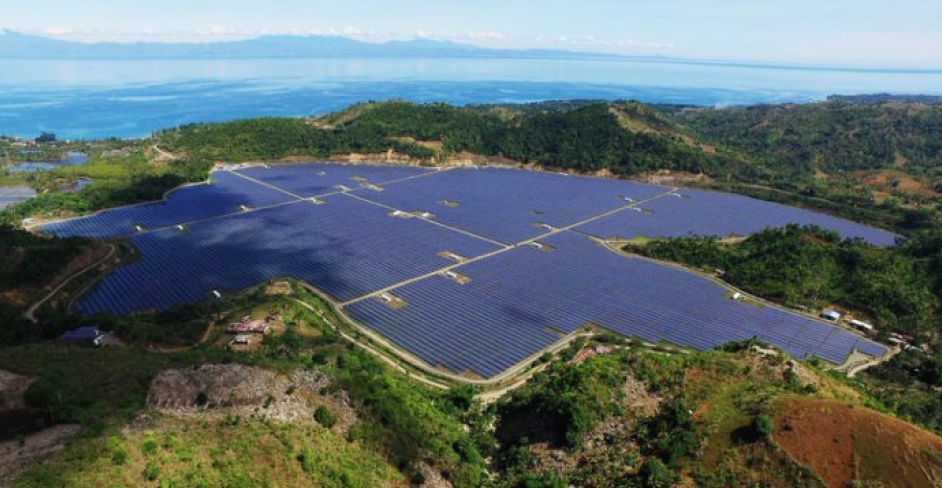

Actual site photos





Technical Description

Location Barangay Talavera, Toledo City, Cebu Province
Service Contract

Citicore Solar Toledo

60 MW Solar Power Generation (for 25 Years)

Grid Visayas
Transmission Line c.420 m; 69 kV
Installed Capacity 60.0 MWdc
Inverter

Schneider Electric 550 - 800V DC – 380V AC, 1040A

72 Inverters

COD 30 June 2016
Design Life 30 years
EPC Contractor(s) MCC
O&M Contractor(s) CPI
Grid Connections Connection point to the NGCP grid through the 69 kV Calulng-Calulng substation​





PV Module Description

No. of modules 193,440
Manufacturer BYD and Renesola
Model 310
Cell Type Polycrystalline Silicon
Peak Power Output 310Wp
Module Efficiency 15.98/16.00%
Power Tolerance 0/+5Wp
Temp Coefficient -0.43% and -0.4%/°C



  • Each PV table is designed to have 2 rows of 20 PV modules each with 2.0 m row-to-row distance to enhance efficiency of the overall PV array​
  • Tier 1 rated and internally accredited and approved PV module suppliers were chosen based on bankability, warranty and availability of modules​
